PRODUCT RANGE
FLOATING BALL VALVES

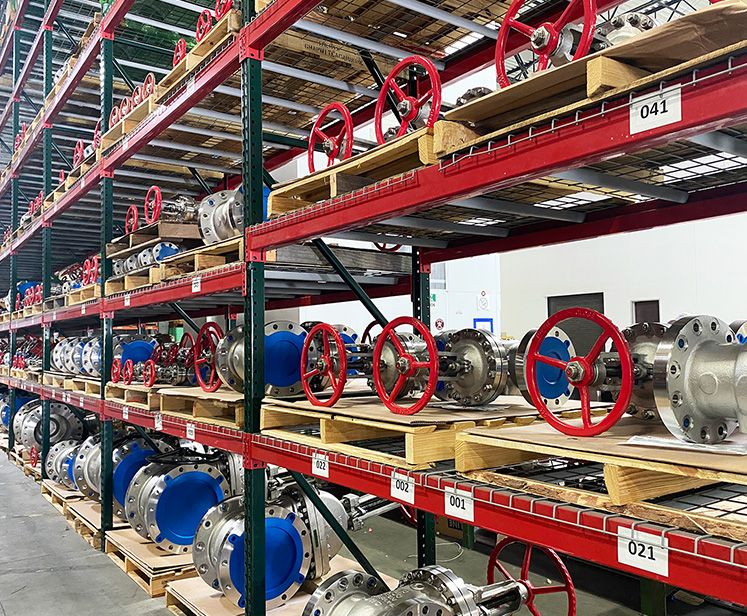

Ladish Valves stocks these valves in a variety of materials, from carbon steel to exotic alloys and pressure classes ranging from 150 to 600 and 1500 / 2000 WOG for three-piece. Our manufacturing facility allows for inventory storage, machining, product assembly, testing and material conformance control. With in-house non-destructive examination (NDE) capabilities and a fully integrated machine shop, quick deliveries and customer requirements are achieved in a timely, quality controlled manner.

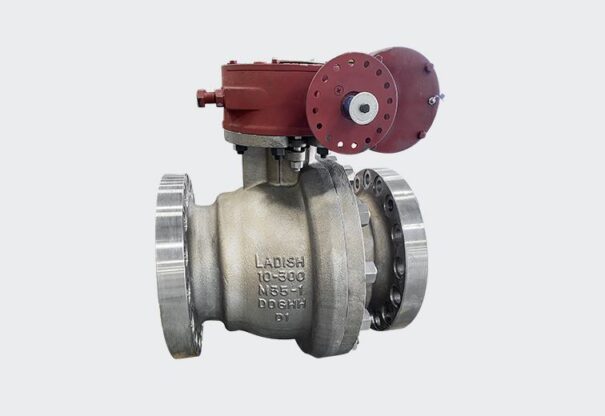

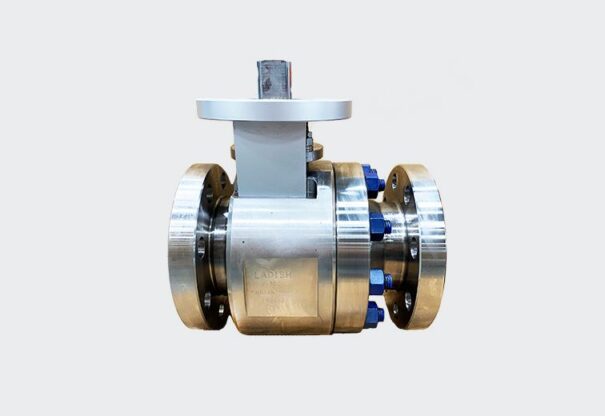

Figure Numbers
P8, R8, P7, R7
Design
API 608 and ASME B16.34 and MSS-SP134 / 2 PC Split Body
Size
½” thru 14”
Pressure Rating
150 thru 600
End Connections
Flanged / Buttweld
Materials
300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB & Low Temp Carbon / Low Temperature
Testing
API 598
Bore
Full / Reduced

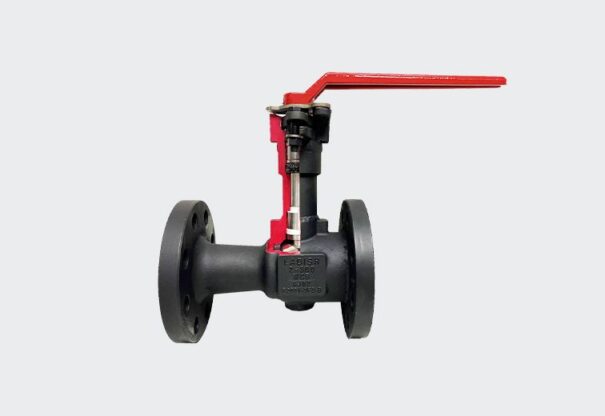

Figure Numbers
P9, R9
Design
API 608 and ASME B16.34 and MSS-SP134 / 2 PC Uni-Body
Size
½” thru 12”
Pressure Rating
150 & 300
End Connections
Flanged / Buttweld
Materials
300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB / Low Temperature
Testing
API 598
Bore
Reduced

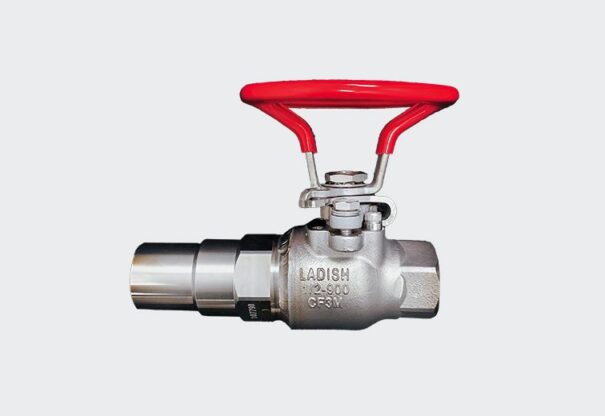

Figure Numbers
PC
design
API 608 and MSS-SP134
Size
½” thru 2”
Pressure Rating
1500 & 2000
End Connections
Threaded / Socketweld
Materials
CF8M 316SS / CF3M 316L / WCB / DUPLEX / ALLOY 20 / HASTELLOY C276
Testing
MSS SP-110
Bore
Full
PRODUCT RANGE
PF SERIES BALL VALVES
Ladish Valves PF Series is our High Quality Floating Ball Valve line with all of the technical features needed for the most demanding Industrial Applications. Designed for Safety, Low Emissions, Long Service Life, and ease of Maintenance, this series is available in Split-Body Full and Reduced Port styles as well as One-Piece (Unibody) reduced port construction. Available in Exotic Alloys as well as more common materials, the PF Series should be your go-to choice for Critical and Toxic Services in applications for the Chemical, Petrochemical, Refining, Upstream and Midstream Oil and Gas Industries and more.
Figure Numbers
P8, R8, P7, R7
Design
API 608 and ASME B16.34 and MSS-SP134 / 2 PC Split Body
Size
½” thru 14”
Pressure Rating
150 thru 600
End Connections
Flanged / Buttweld
Materials
300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB & Low Temp Carbon / Low Temperature
Testing
API 598
Bore
Full / Reduced
Figure Numbers
P9, R9
design
API 608 and ASME B16.34 and MSS-SP134 / 2 PC Uni-Body
Size
½” thru 12”
Pressure Rating
150 & 300
End Connections
Flanged / Buttweld
Materials
300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB / Low Temperature
Testing
API 598
Bore
Reduced
