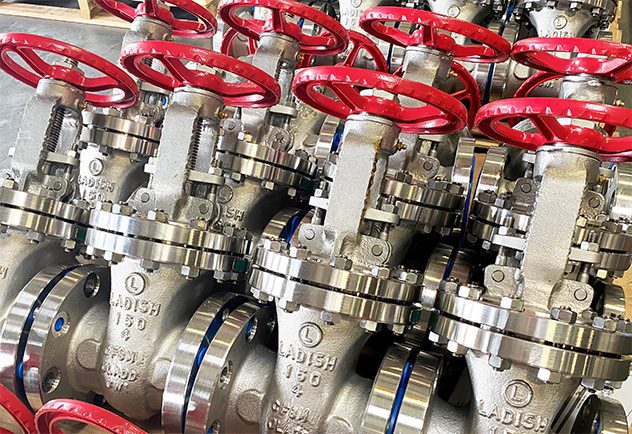

Cast Gate / Globe / Check Valves
PRODUCT RANGE
GATE / GLOBE / CHECK
Gate Valves are the most commonly used valve type in the industry. It is intended for on-off flow control. Any attempt to use in a partially opened position for throttling could result in chattering, excessive wear
and rapid erosion of the disc and seat, and impair its ability to close tightly.
Globe Valves are used for throttling flow control. Shut-off is accomplished by moving the disc against the flow stream rather than across it. This reduces chatter, wear & erosion to a minimum. The flow pattern through a
globe valve involves changes in direction, resulting in greater resistance than a gate valve.
The Swing Check Valve is used to prevent back flow in the process line. Flow is in a straight line through
the valve resulting in minimal pressure drop.
Gate
Figure Numbers | 8273, 8274, 8275, 8279, 8363, 8364, 8375, 8379, 8663, 8664, 8675, 8679, 8975, 8979, 8575, 8579, 8929, 8925, 8529, 8525, 8429, 8425 |
Design | API 600, API 603, ASME B16.34 |
Size | ½” thru 36” |
Pressure Rating | 150 thru 2500 |
End Connections | Flanged / Threaded / Socket Weld / Buttweld |
Materials | 300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys |
Testing | API 598 |
Body-Bonnet Connection | Bolted Bonnet / Pressure Seal |
Construction | T-Pattern / Y-Pattern |
Globe
Figure Numbers | 7270, 7271, 7272, 7276, 7360, 7361, 7372, 7376, 7660, 7661, 7672, 7676, 7972, 7976, 7572, 7576, 7929, 7922, 7529, 7522, 7429, 7422 |
Design | API 623, ASME B16.34 |
Size | ½” thru 18” |
Pressure Rating | 150 thru 2500 |
End Connections | Flanged / Threaded / Socket Weld / Buttweld |
Materials | 300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys |
Testing | API 598 |
Body-Bonnet Connection | Bolted Bonnet / Pressure Seal |
Construction | T-Pattern / Y-Pattern |
Check
Figure Numbers | 5270, 5271, 5272, 5276, 5370, 5371, 5372, 5376, 5670, 5671, 5672, 5676, 5972, 5976, 5572, 5576, 5979, 5922, 5579, 5522, 5479, 5422 |
Design | API 594, ASME B16.34 |
Type | Swing / Piston / Tilting Disc / Stop Check |
Size | ½” thru 36” |
Pressure Rating | 150 thru 2500 |
End Connections | Flanged / Threaded / Socket Weld / Buttweld |
Materials | 300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys |
Testing | API 598 |
Body-Bonnet Connection | Bolted Bonnet / Pressure Seal |
Construction | T-Pattern / Y-Pattern |
GATE / GLOBE / CHECK
Gate Valves are the most commonly used valve type in the industry. It is intended for on-off flow control. Any attempt to use in a partially opened position for throttling could result in chattering, excessive wear and rapid erosion of the disc and seat, and impair its ability to close tightly. Globe Valves are used for throttling flow control. Shut-off is accomplished by moving the disc against the flow stream rather than across it. This reduces chatter, wear & erosion to a minimum. The flow pattern through a globe valve involves changes in direction, resulting in greater resistance than a gate valve. The Swing Check Valve is used to prevent back flow in the process line. Flow is in a straight line through the valve resulting in minimal pressure drop.
Gate

Figure Numbers | 8273, 8274, 8275, 8279, 8363, 8364, 8375, 8379, 8663, 8664, 8675, 8679, 8975, 8979, 8575, 8579, 8929, 8925, 8529, 8525, 8429, 8425 |
Design | API 600, API 603, ASME B16.34 |
Size | ½” thru 36” |
Pressure Rating | 150 thru 2500 |
End Connections | Flanged / Threaded / Socket Weld / Buttweld |
Materials | 300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys |
Testing | API 598 |
Body-Bonnet Connection | Bolted Bonnet / Pressure Seal |
Construction | T-Pattern / Y-Pattern |
Globe




Figure Numbers | 7270, 7271, 7272, 7276, 7360, 7361, 7372, 7376, 7660, 7661, 7672, 7676, 7972, 7976, 7572, 7576, 7929, 7922, 7529, 7522, 7429, 7422 |
Design | API 623, ASME B16.34 |
Size | ½” thru 18” |
Pressure Rating | 150 thru 2500 |
End Connections | Flanged / Threaded / Socket Weld / Buttweld |
Materials | 300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys |
Testing | API 598 |
Body-Bonnet Connection | Bolted Bonnet / Pressure Seal |
Construction | T-Pattern / Y-Pattern |
Check




Figure Numbers | 5270, 5271, 5272, 5276, 5370, 5371, 5372, 5376, 5670, 5671, 5672, 5676, 5972, 5976, 5572, 5576, 5979, 5922, 5579, 5522, 5479, 5422 |
Design | API 594, ASME B16.34 |
Type | Swing / Piston / Tilting Disc / Stop Check |
Size | ½” thru 36” |
Pressure Rating | 150 thru 2500 |
End Connections | Flanged / Threaded / Socket Weld / Buttweld |
Materials | 300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys |
Testing | API 598 |
Body-Bonnet Connection | Bolted Bonnet / Pressure Seal |
Construction | T-Pattern / Y-Pattern |
