LADISH PRODUCT PORTFOLIO

Product Overview

Table of Contents

Cryogenic Valves

Cast & Forged Options Available

Gate, Globe & Check Valves

Cast & Forged Options Available

Floating Ball Valves

Cast & Forged Options Available

Cryogenic Cast & Ball Valves

Ladish Cast Cryogenic Valves

Ladish Cryogenic Ball Valve
DesignAPI 600, API 603, and ASME B16.34 and MSS-SP134
Size½” thru 30”
Pressure Rating150 thru 2500
End ConnectionFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)
DesignAPI 623, ASME B16.34 and MSS-SP134
Size½” thru 16”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)
DesignAPI 594, ASME B16.34 and MSS-SP134
Size½” thru 36”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)
DesignAPI 608 and ASME B16.34 and MSS-SP134
Size½” thru 14”
Pressure Rating150 thru 600
End ConnectionsFlanged / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)

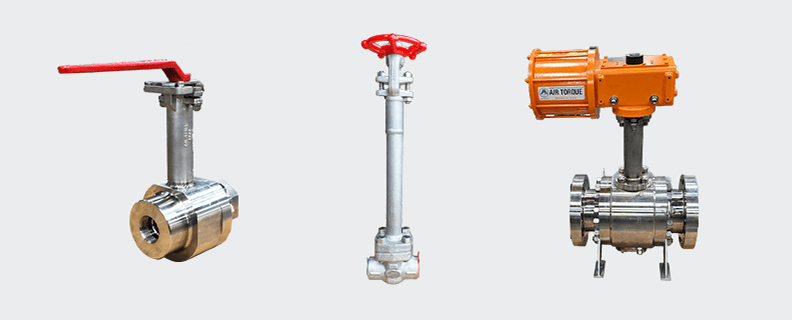

Ladish Forged Cryogenic Valves

DesignAPI 602, ASME B16.34 and MSS-SP134
Size½” thru 4″
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)
DesignAPI 602, ASME B16.34 and MSS-SP134
Size½” thru 4”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)
DesignAPI 602, ASME B16.34 and MSS-SP134
Size½” thru 4”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Hastelloys / Monel
TestingNon Cold Box API 598 / Cold Box Testing MSS-SP134 / BS 6364 (Optional)

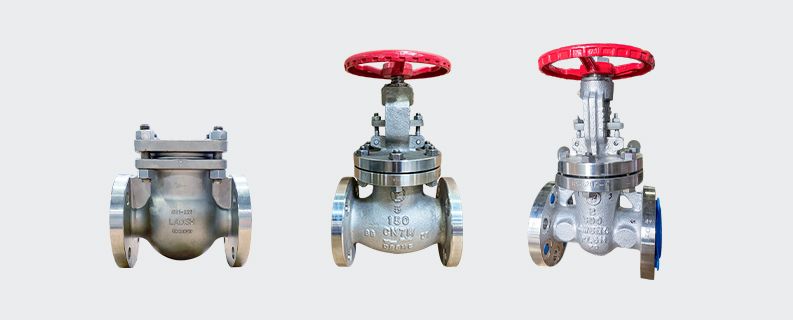

Gate, Globe & Check Valves

Ladish Cast Gate, Globe & Check Valves

DesignAPI 600, API 603, ASME B16.34
Size½” thru 36”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys
TestingAPI 598
Body-Bonnet ConnectionBolted Bonnet / Pressure Seal
ConstructionT-Pattern / Y-Pattern
DesignAPI 623, ASME B16.34
Size½” thru 18”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys
TestingAPI 598
Body-Bonnet ConnectionBolted Bonnet / Pressure Seal
ConstructionT-Pattern / Y-Pattern
DesignAPI 594, ASME B16.34
Size½” thru 36”
Pressure Rating150 thru 2500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys
TestingAPI 598
Body-Bonnet ConnectionBolted Bonnet / Pressure Seal
ConstructionT-Pattern / Y-Pattern

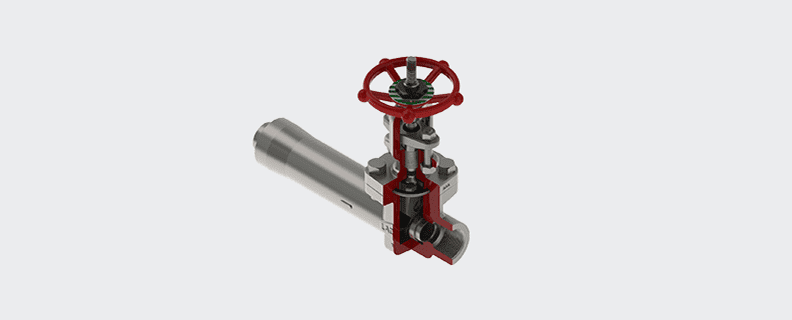

Ladish Forged Gate, Globe & Check Valves

Ladish Gate Valve
DesignAPI 602 AND ASME B16.34
Size½” thru 4”
Pressure Rating150 thru 4500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / A105 and Low Temp Carbon / Alloy 20 / Duplex / Nickel Alloys
TestingAPI 598
Body-Bonnet ConnectionBolted, Welded, Pressure Seal, Bonnetless, Bellowseal
ConstructionT-Pattern / Y-Pattern
DesignAPI 602 AND ASME B16.34
Size½” thru 4”
Pressure Rating150 thru 4500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / A105 and Low Temp Carbon / Alloy 20 / Duplex / Nickel Alloys
TestingAPI 598
Body-Bonnet ConnectionBolted, Welded, Pressure Seal, Bonnetless, Bellowseal
ConstructionT-Pattern / Y-Pattern
DesignAPI 602 AND ASME B16.34 / Bolted Cover
Size½” thru 4”
Pressure Rating150 thru 4500
End ConnectionsFlanged / Threaded / Socket Weld / Buttweld
Materials300 Series Stainless / A105 and Low Temp Carbon / Alloy 20 / Duplex / Nickel Alloys
TestingAPI 598
Body-Bonnet ConnectionBolted, Welded, Pressure Seal
ConstructionT-Pattern / Y-Pattern

Cast & Forged Floating Ball Valves

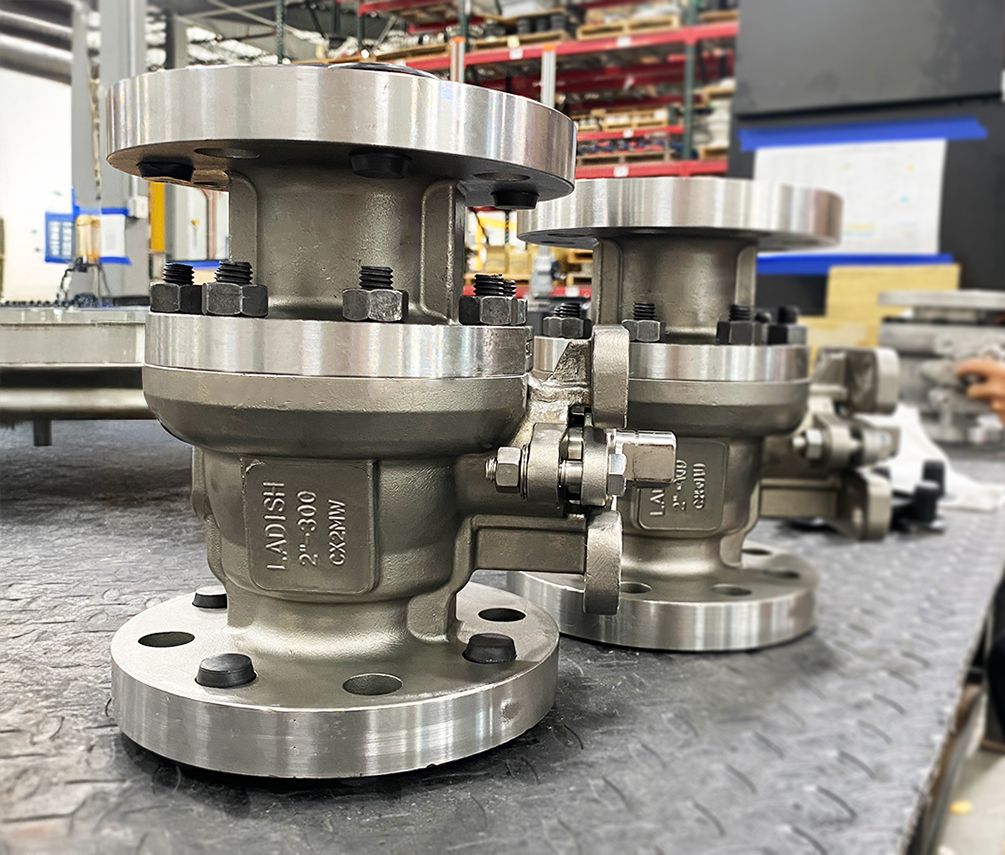

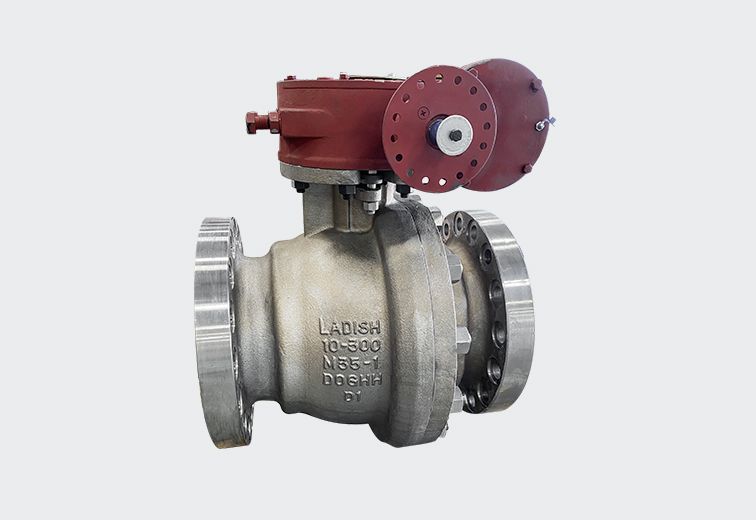

Ladish Cast Floating Ball Valves

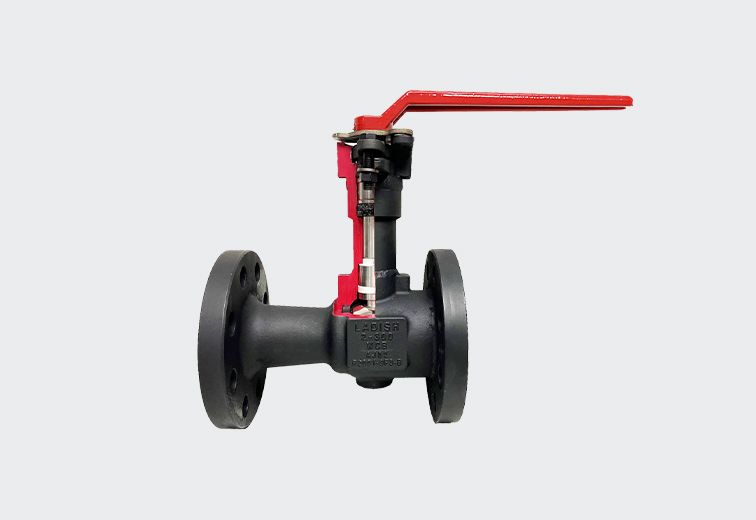

Ladish Cast Two-Piece, Full Bore, Packing, O-Ring Stem Design
Ladish Cast Uni-Body Standard Bore Packing/O-Ring Stem Design
DesignAPI 608 and ASME B16.34 and MSS-SP134 / 2 PC Split Body
Size½” thru 14”
Pressure Rating150 thru 600
End ConnectionsFlanged / Buttweld
Materials300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB & Low Temp Carbon / Low Temperature
TestingAPI 598
BoreFull / Reduced
DesignAPI 608 and ASME B16.34 and MSS-SP134 / 2 PC Uni-Body
Size½” thru 12”
Pressure Rating150 & 300
End ConnectionsFlanged / Buttweld
Materials300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB / Low Temperature
TestingAPI 598
BoreReduced

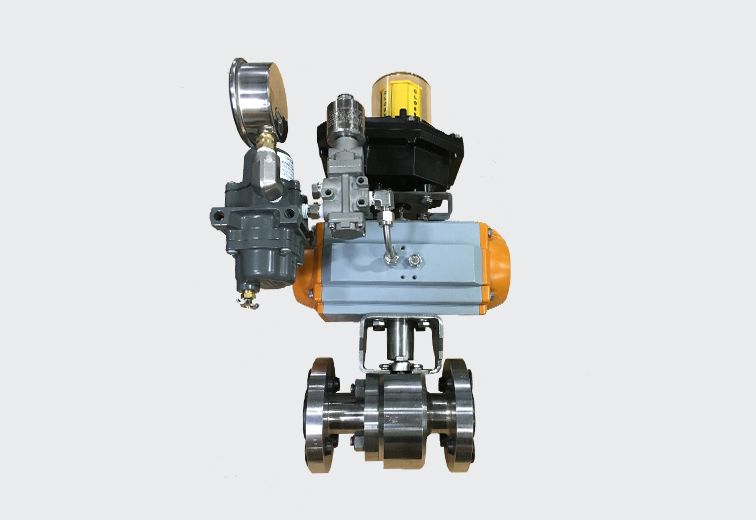

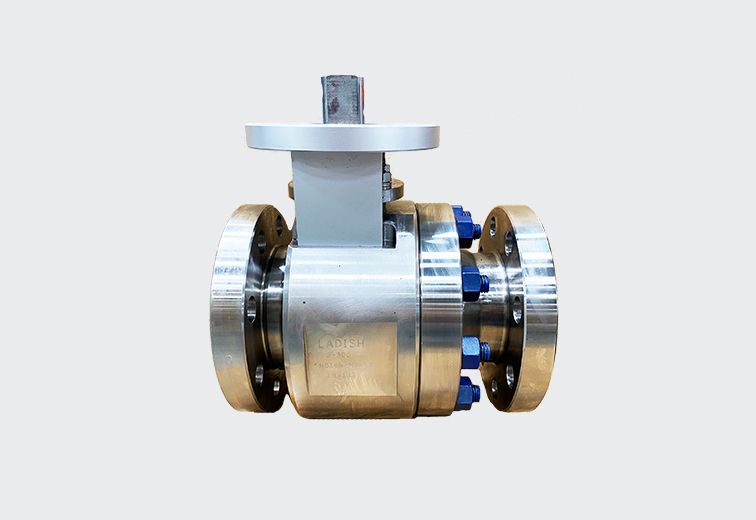

Ladish Forged Floating Ball Valves

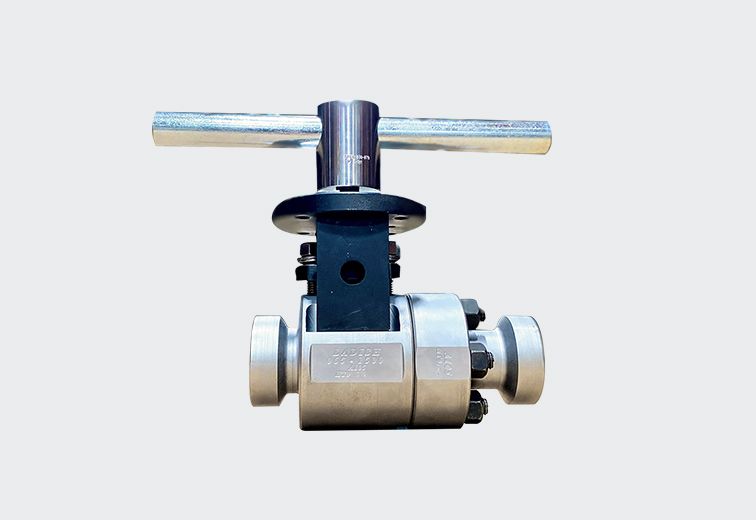

Ladish Bar Stock Ball Valve, Model P2 Stem Packing Design

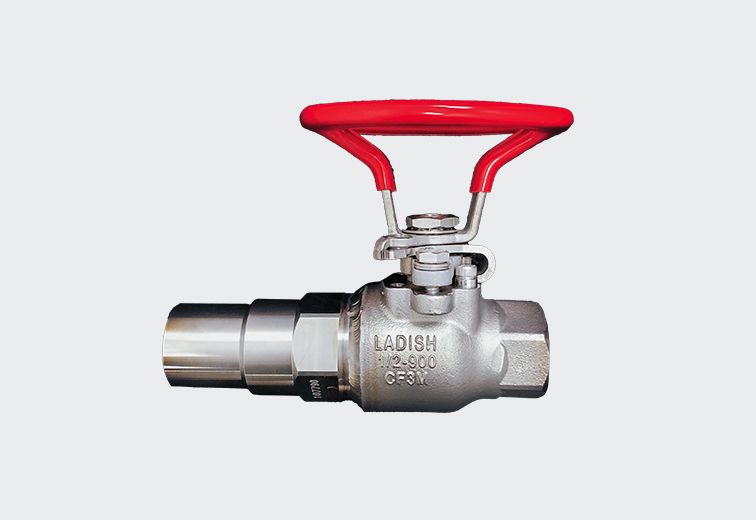

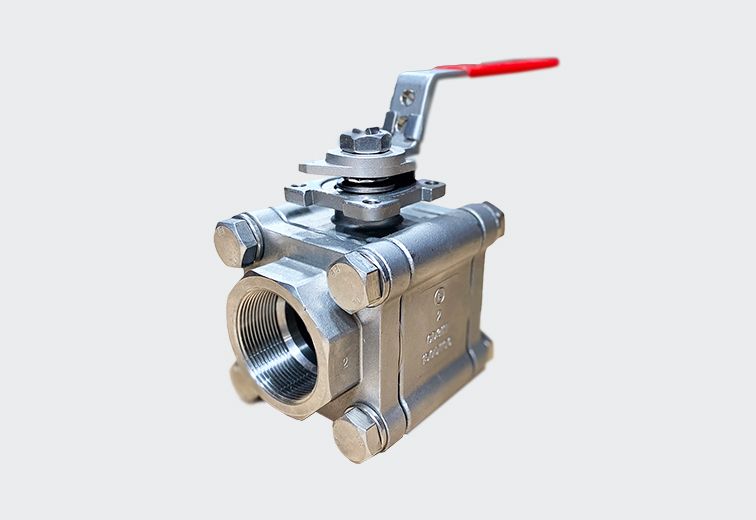

Ladish Threaded Bar Stock Ball Valve P1/P2 Stem Packing Design
DesignAPI 608 and ASME B16.34
Size½” thru 16”
Pressure Rating150 thru 600
End ConnectionsFlanged / Buttweld / Threaded
Materials300 Series Stainless / Alloy 20 / Duplex / Nickel Alloys / WCB / Low Temperature
TestingAPI 598
